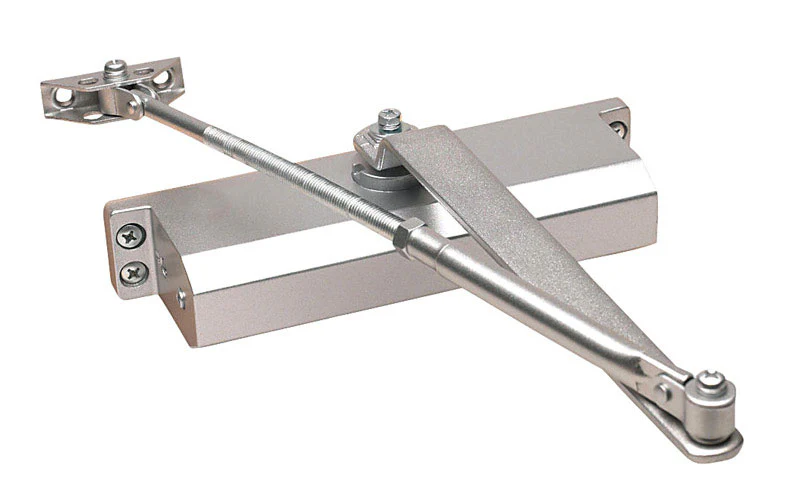

Tell Aluminum Aluminum/Steel Hydraulic Door Closer Grade 3

Tell Manufacturing's 500 Series Door Closer is designed for interior commercial use. It is a Grade 3 heavy-duty aluminum commercial door closer that complies with ANSI A156.4, UL/ULC listed up to 3 hour fire rated. The DC100137 has a fixed spring tension, size 3.

Forged steel, accommodates reveals up to 3 1/4 inch adjustable extension arm

Adjustable hydraulic providing cushioning and preventing uncontrolled openings of the door

Grade 3 size 3 aluminum finish closer

9-1/16 inch horizontal and 3/4 inch vertical mounting hole locations

Tri-pack regular, top jamb and parallel arm applications

Door range up to 180 degree

Complies with ANSI A156.4, grade 1, 2 million cycles, UL/ULC listed up to 3 hours fire rated

Adjustable, independent, non-critical (sweep and latch), consistent and closing speeds

Unit: EA
UPC: 737874400086
Model Number: DC100137
